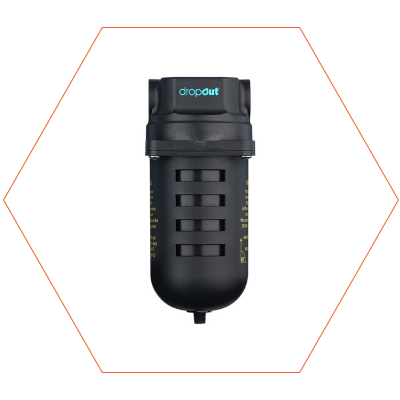

PCL Dropout® Water & Oil Filter

The Compact' Dropout® unit is used as an inline point of use liquid (water and oil) separator and contaminant remover.

Unlike traditional separators that are only efficient with constant and stable flows, Dropout® has the ability to maintain its performance levels during start up where it reaches optimum performance in a fraction of a second. This is also useful for pulsed flows.

This product  is easy to install. and once fitted, requires no replacement filters and has zero ongoing servicing costs, thanks to its built in auto drain.

View other Sprayshop® items and wood finishes.

• Inlet/Outlet connection : 1/2"
• Flow rate: 10cfm/ 283l/min
• Maximum pressure: 16bar/ 232 psi
• Operating pressure: 1-15bar/ 15-217psi
• Operating temperature: >0 - +60°C
• Maximum inlet temperature: 35°C
• Drain connection: 1/8"
• Water storage: 50cc
• Weight: 0.54kg
• Dimensions: 182.5mm x 88mm
• Material (housing): Nylon
• Material (internal): ABS
